Scienco® SciBRINE® BrineMakers

Description

scienco_scibrine_logoComplete, Onsite, Bulk Salt-Dissolving System

SCIENCO® SciBRINE® Brinemakers produces a clear, saturated brine in an automated system. This ensures a consistent, saturated brine and easy maintenance. Scienco/FAST recommends using a filament-wound, reinforced, corrosive-free fiberglass tank for the greatest combination of strength, durability, and economy.  However, any type of locally made tank can be utilized.  All types of salts can be used, depending on your application: rock, solar, granulated food grade, etc.

The Scienco® SciBRINE® systems (also available as a KIT for locally-made tanks) are built to meet the standards of the the US Department of Agriculture (USDA) and Federal Safety and Inspection Service (FSIS) food processing requirements.



• Eliminates Bag Disposal
• Reduces Labor Costs
• Reduces Warehouse Space
• Economical Solution

Complete, bulk salt storage for food processing, textile dye-setting and chemical industries. Brinemakers are also ideal for municipalities with large water softening systems. With multiple model sizes designed to meet both large and small-volume salt users, Scienco® Brinemakers have been the hallmark of the industry since the 1960s.

ABOUT BRINEMAKERS

Brinemakers are used to produce and store a liquid brine solution that can be used as a food additive, a chemical feed for various chemical processes or an ion exchange/water softening process. The Scienco® SciBRINE® utilizes a down-flow, brine-making process with Levetrol® Plus controllers for a highly-efficient, “bulk salt dissolver” system for a multitude of applications.

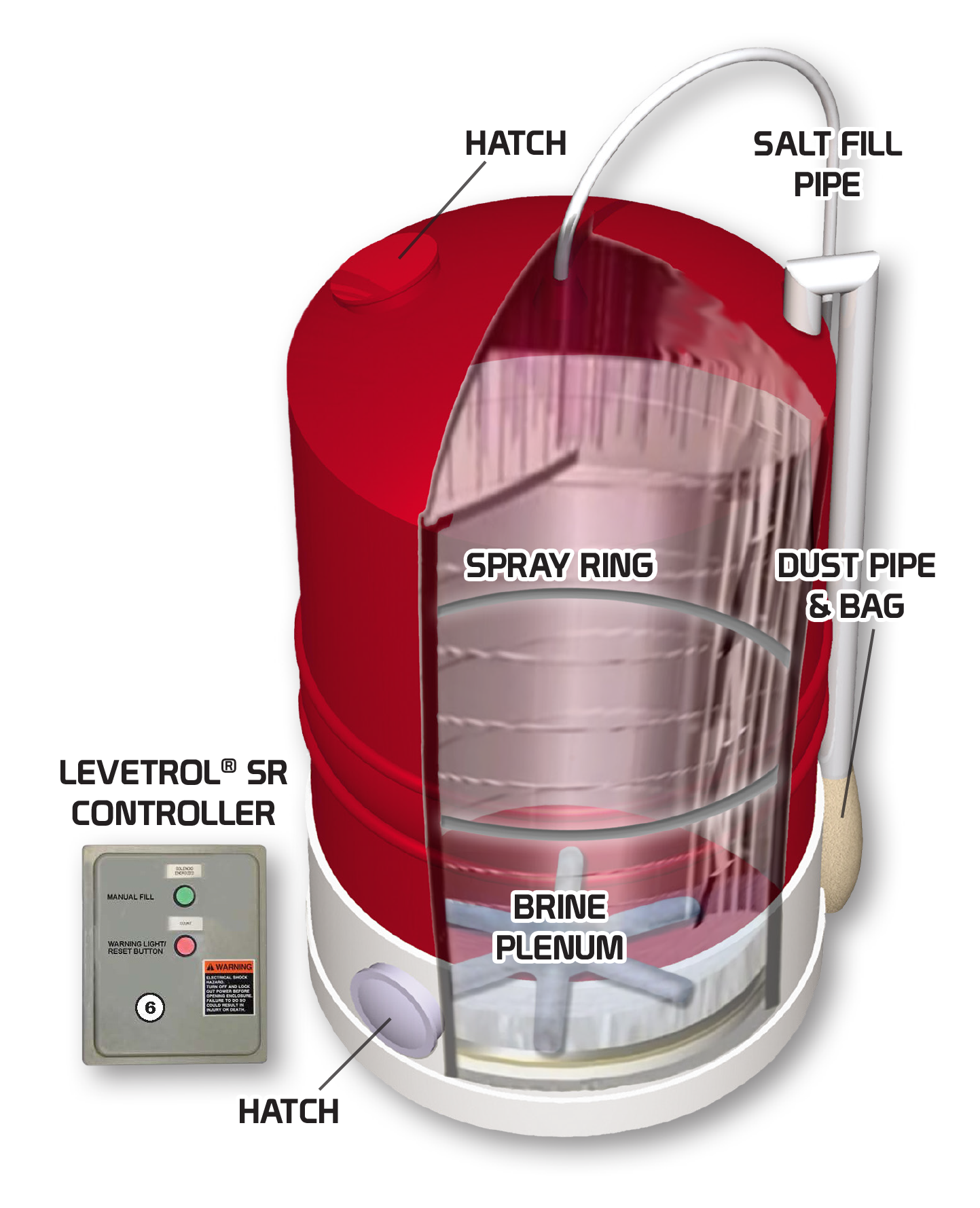

HOW IT WORKS:



Technical Downloads

 CLICK TO VIEW, DOWNLOAD, OR PRINT THE PRODUCT BROCHURE.

 Scienco® Products Brochure

 Scienco® SciBRINE® Bulk Salt Dissolver Brinemaker

 Scienco® SciBRINE® Design Guidelines

Get Acrobat

SCIBRINE® MODELS AND SIZES

Standard Models(FG denotes Fiberglass tank configuration) Total Salt Storage (tons) Max. Brine Flow (GPM) Overall Tank Height (ft.) Operating Weight (tons)
SciBRINE® FG0706 0.3
19.2
8.5
8
SciBRINE® FG0709 2.0
19.2
11.5
14
SciBRINE® FG0712 4.7
19.2
15.5
18
SciBRINE® FG0809 0.9
25.1
11.5
18
SciBRINE® FG0812 6.2
25.1
14.5
24
SciBRINE® FG0815 9.7
25.1
17.5
30
SciBRINE® FG0915 12.2
31.8
17.5
38
SciBRINE® FG1015 16.5
39.3
22
50
SciBRINE® FG1212 11.9
56.5
18
58
SciBRINE® FG1215 23.8
56.5
22
70
SciBRINE® FG1220 43.5
56.5
24
90

Whether ordered as a complete system or just a kit for a locally made tank (fiberglass, plastic, etc.), the Scienco® SciBRINE® BrineMaker gives customers more flexibility to create and store brine on site.

Why Scienco/FAST Systems…

MULTIPLE APPLICATIONS IN EVERYDAY SERVICE

With decades of proven results and more than 50,000 land/marine installations, FAST® systems have been used from harbor tugs to cruise ships and from single homes to small cities. The largest MarineFAST systems process more than 195,000 gpd (739 m3/d) and the largest land FAST systems process more than 1.5 mgpd (5,680 m3/d).

PROVEN TECHNOLOGY

With more third-party certifications, technology approvals, and awards, Bio-Microbics, Scienco/FAST, and SeptiTech are known for its decentralized wastewater (total blackwater/greywater) treatment technologies. These systems have performed exceptionally well in achieving higher levels of nitrogen removal and optimal effluent quality with automated operation and energy-efficiency required in today’s standards and regulations. In addition, the treatment quality our expanded product offering can help meet most, if not all, onsite application goals.

Fully certified by the US Coast Guard under 33 CFR Part 159 and IMO rules, FAST® (Fixed Activated Sludge Treatment) treatment systems can be found around the globe in offshore, municipal, industrial, commercial and residential applications. The reason for FAST’s success is its ability to provide years of reliable trouble-free service without adjustments or the need for a skilled operator.

SIMPLE PROCESS

Using ordinary pumps, blowers and controls already familiar to vessel personnel, the sophistication of the BMS component is inherent in the state of the art process and the know how needed to get maximum benefit from it.

OTHER BENEFITS

Aerobic process and ABS deep tank standards – no corrosion or terrible odors. All machinery, piping and controls meet USCG requirements for inspected vessels.

Also, FAST is already capable of meeting the next generation of sewage regulations. This protects you from changes in the regulations or from individual foreign or local regulations which exceed minimum USCG certification requirements.

Worldwide Service

With vessels circling the globe, service questions often arise. Service is available worldwide, with equipment manufactured in the United States, Canada and Australia.

For larger MarineFAST® Systems, check out the M- & MX-Series or DV-Series.

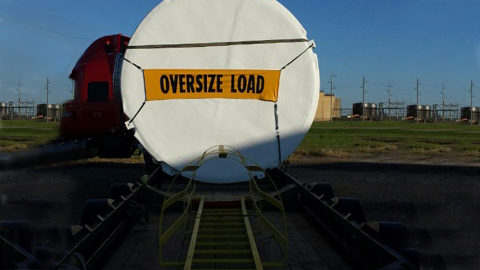

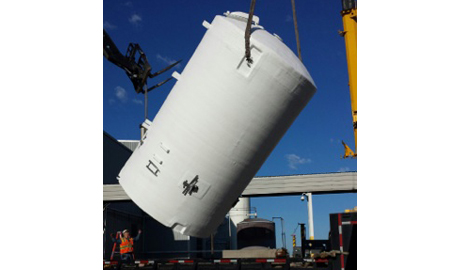

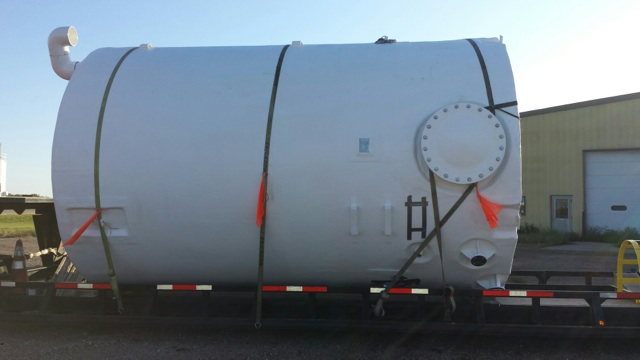

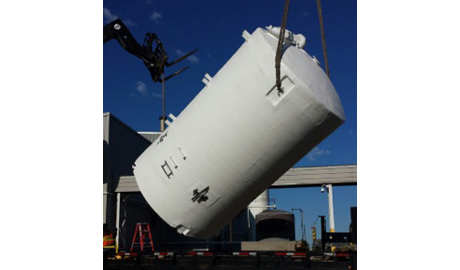

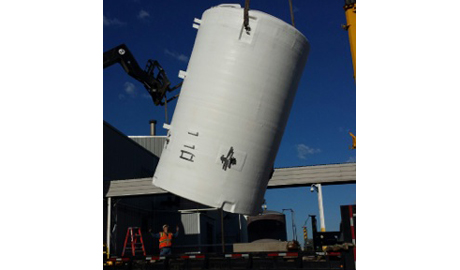

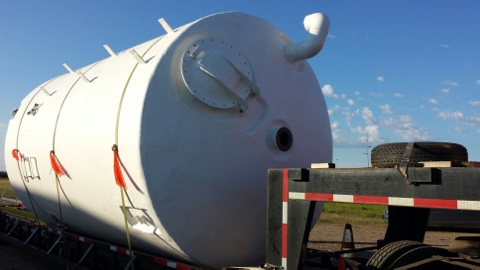

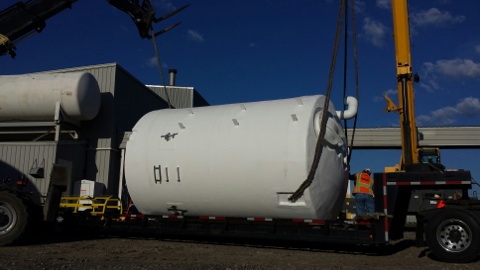

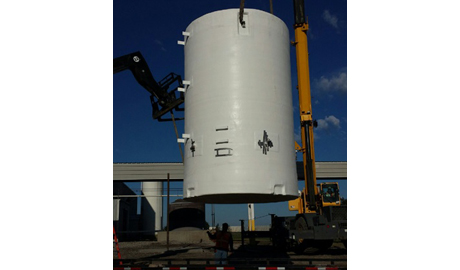

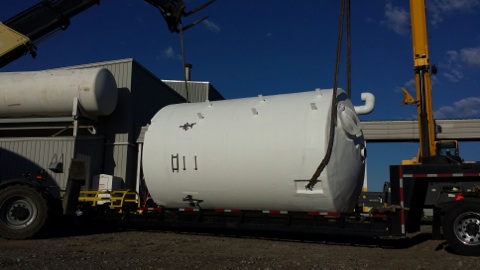

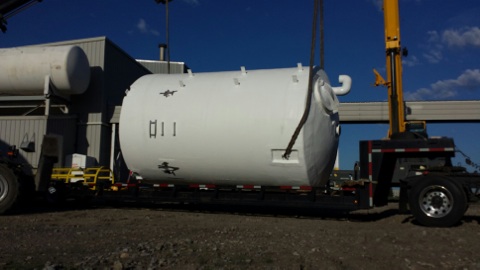

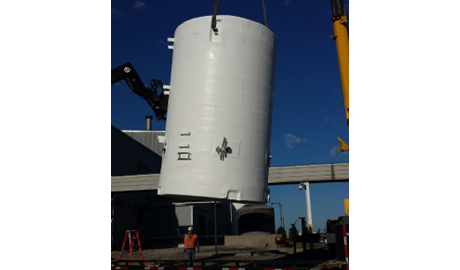

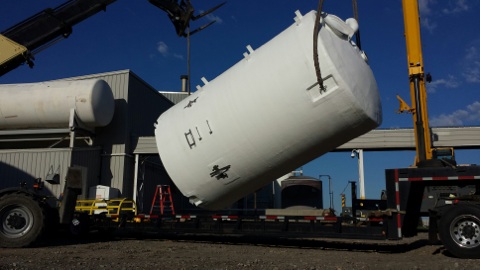

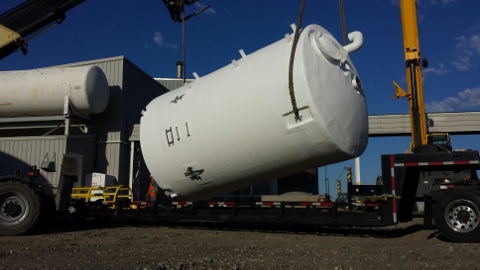

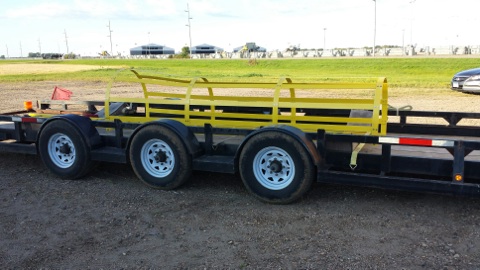

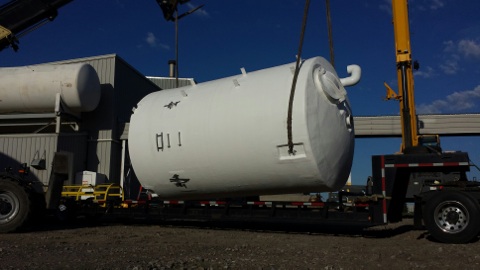

See a recent installation in North Dakota below:

  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
  • SciBRINE® FG1015 BrineMaker Installation
